> Pneumatic Planishing Hammer

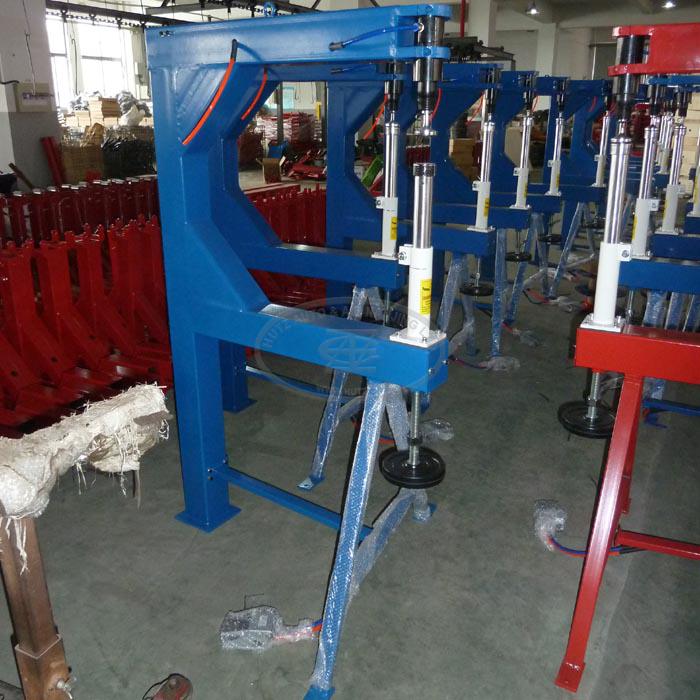

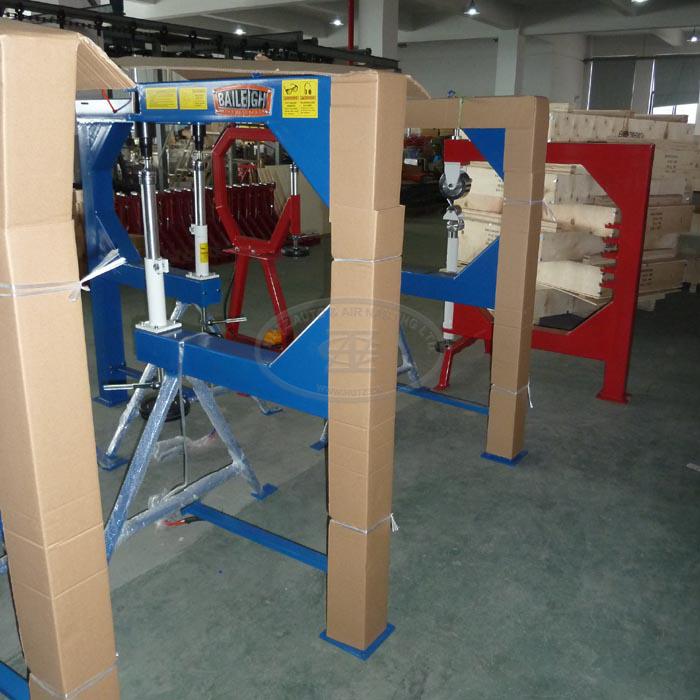

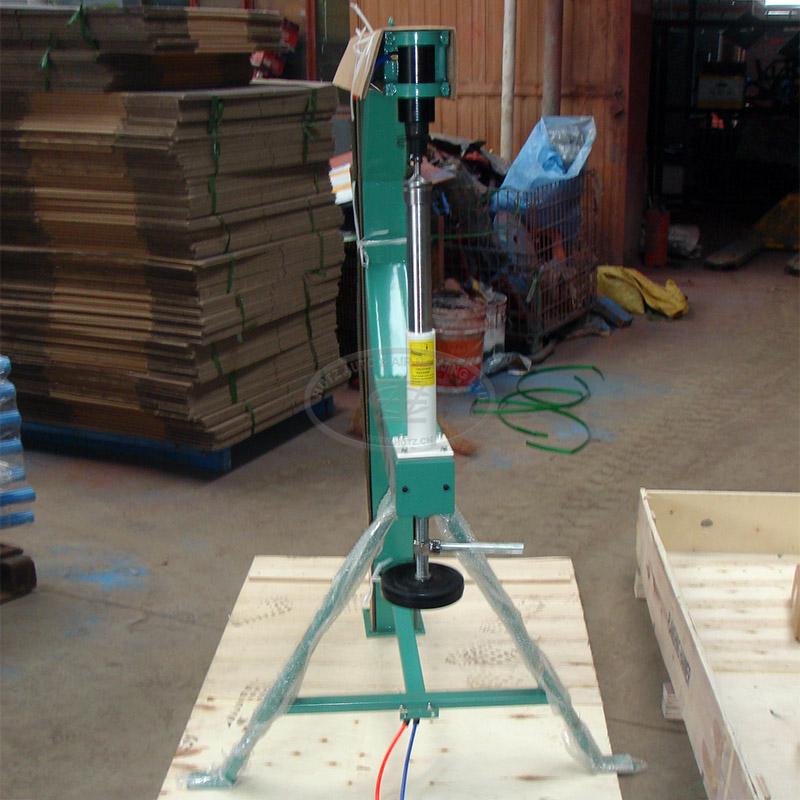

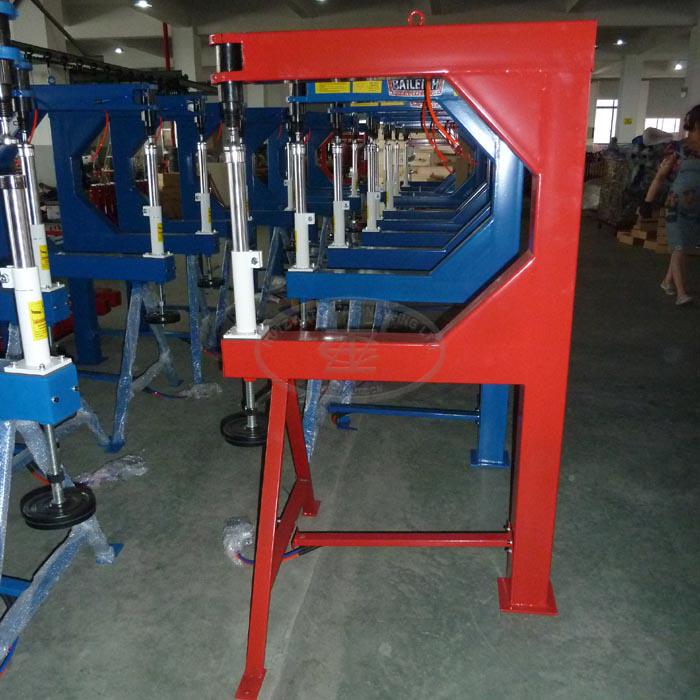

Planish Hammer PPH700
- Capacity for steel: 18 gauge
- Blow capacity: 2600 bpm
- Feature: foot pedal operation
- Throat: 24 inch
- Product description: Pneumatic planishing hammer PPH700 capacity for mild steel up to 18 gauge blow capacity 2,600 blows per minute throat 600mm height 700mm width foot pedal operation
Product introduction
| Model | PPH700 |
| Capacity for mild steel | up to 18 gauge |
| Blow capacity | 2,600 blows per minute |
| Throat | 610 mm/ 24" |
| Working range | 600 mm height, 700 mm width |
| Head opening | 2-1/2" |
| Frame | rugged steel |
| Air pressure | 105 - 120 psi |
| Air consumption | 12 cfm |

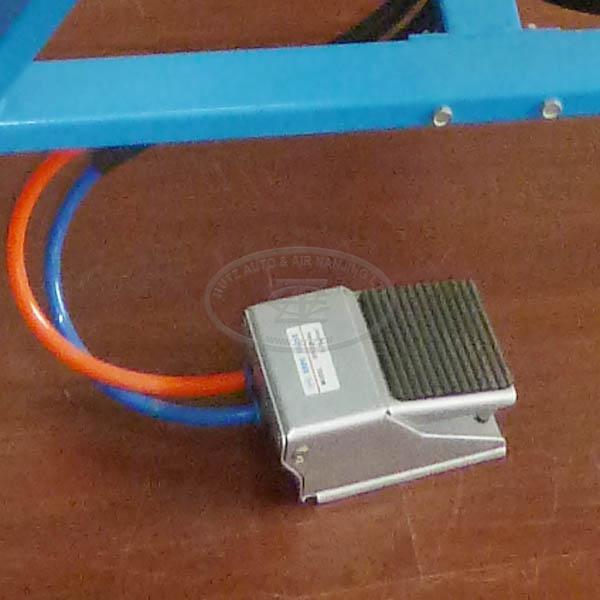

| Control | foot pedal operation |
| Control power | 230v 50hz or 110v 60hz single phase |
| Anvil size | 48 mm flat (24/30/37/50/75/125/250/600 mm) |
| Anvil material | stainless steel |
| Overall dimension | 1,440 x 845 x 900 mm |
| Application | smooth large areas of metal for welds and panel crowning |

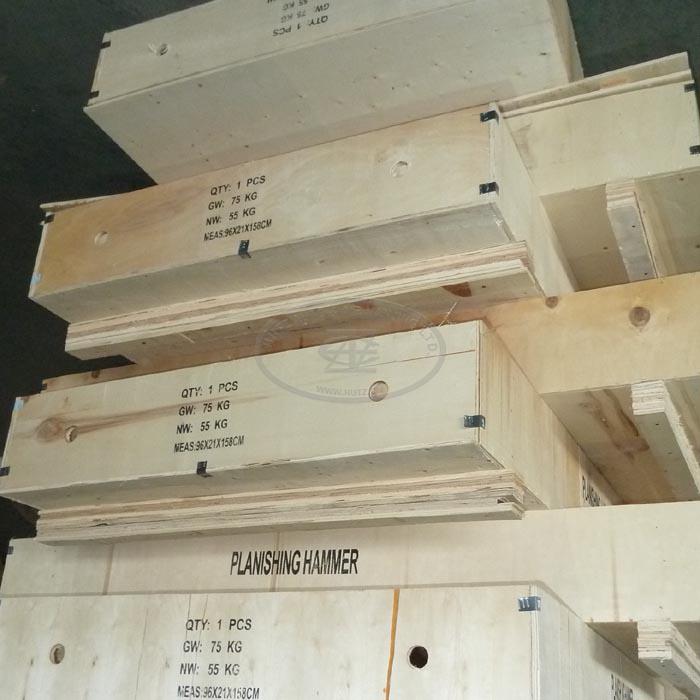

| Package | plywood case |
| N.W. | 53 kg |
