> Manual Tyre Bead Breaker

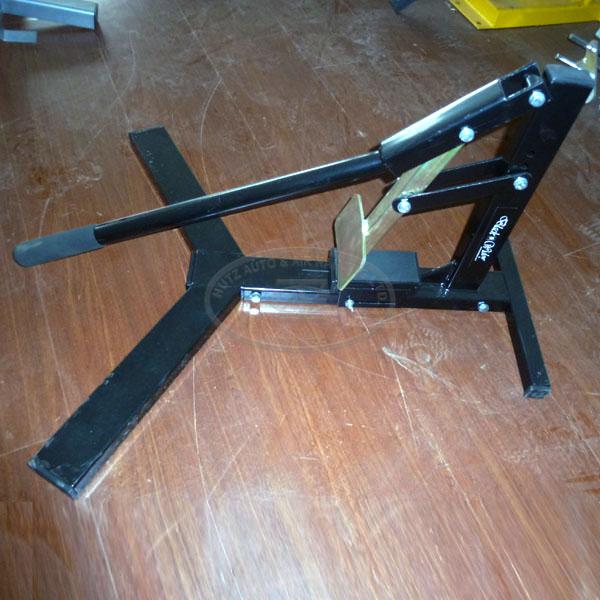

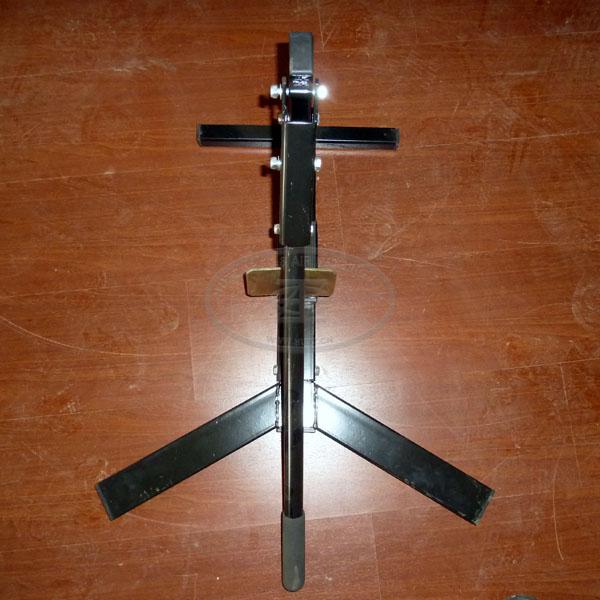

Bead Breaker TBB03Y
- Max. bead thickness: 160 mm
- Max. tyre profile: 190 mm
- Type: manual bench type
- Product description: Tyre bead breaker- manual bench type TBB03Y Max. bead thickness 160 mm Max. tyre profle 190 mm Application: motorcycle, car.
Product introduction
| Model | TBB03Y |
| Max. Bead thickness | 160 mm |
| Max. Tyre profile | 190 mm, 15-19 inch width |
| Max. opening | 200 mm |
| Handle | Φ27 x 540 mm pipe welded on U tube 38 x 30 x 190 mm, total length 710 mm |
| Platen | 130 x 70 x 4 mm plate welded on pipe 25.5 x 25.5 x 265 mm, total length 275 mm |
| Vertical frame | 49 x 400 mm square steel tube |
| Straight base | 59 x 400 mm square steel tube |
| Front T base | 330 x 28 x 90 mm square steel tube |

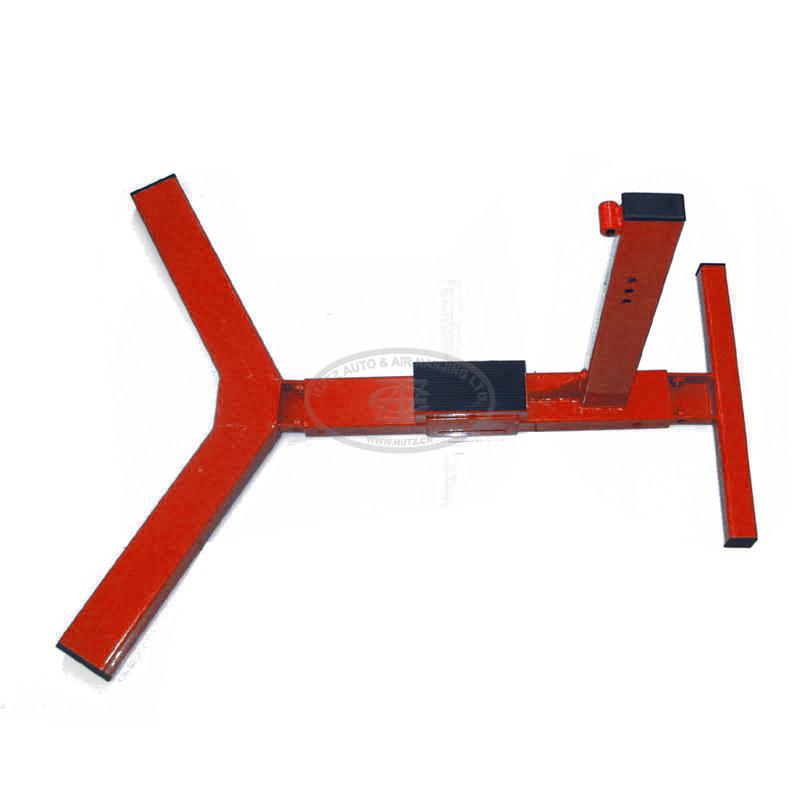

| Behind Y base | 540 x 250 x 30 mm square steel tube |

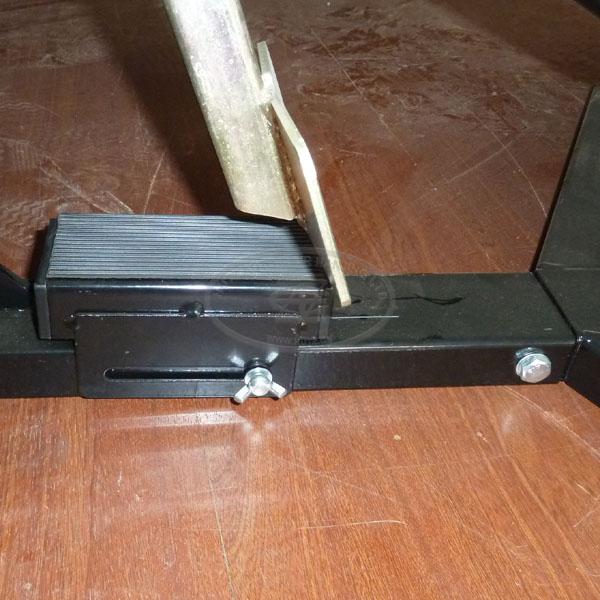

| Shoe | 120 x 65 x 65 mm solid flat steel welded on square steel tube |
| Total height | 600 mm |
| Protection | rubber cover |

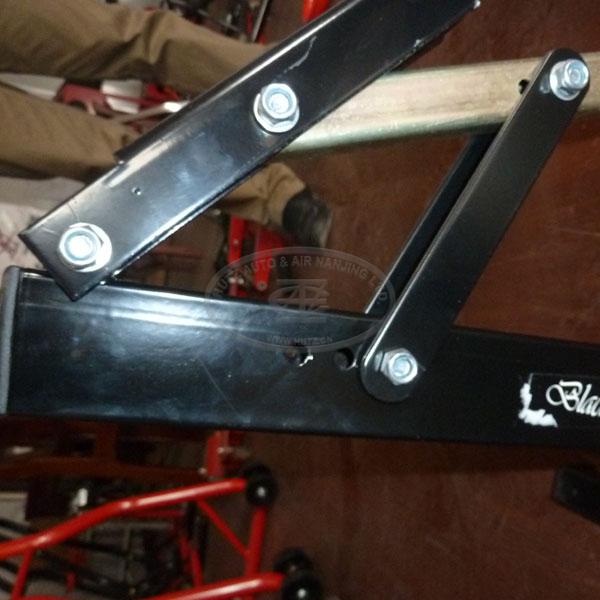

| Function | lever action with parallel linkage |
| Feature | base and shoe adjustable |
| Application | motorcycle, car |
| N.W. | 7.5 kg |
