> Semi Rotary Hand Pump

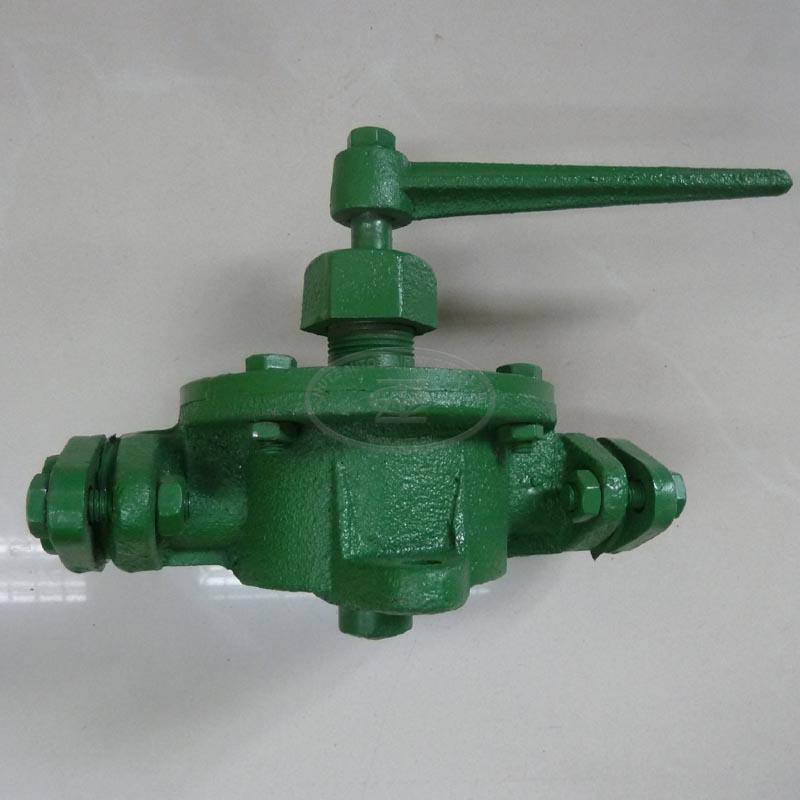

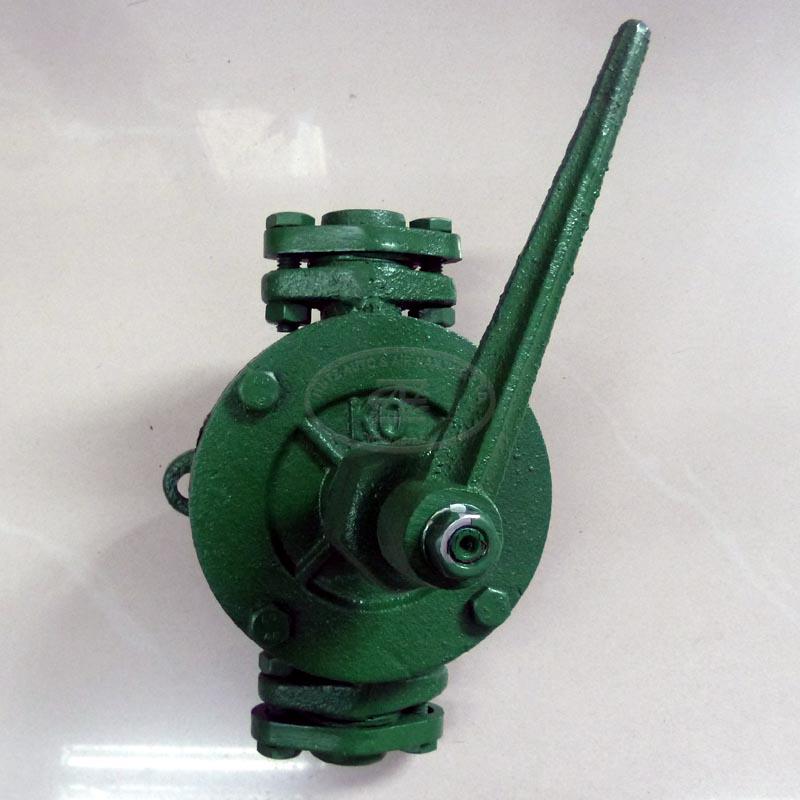

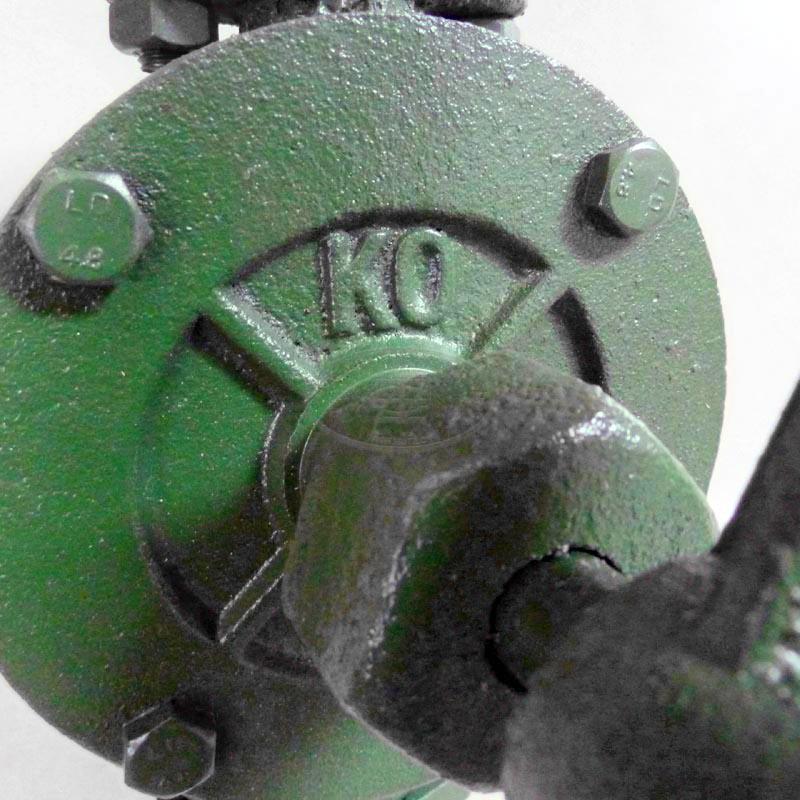

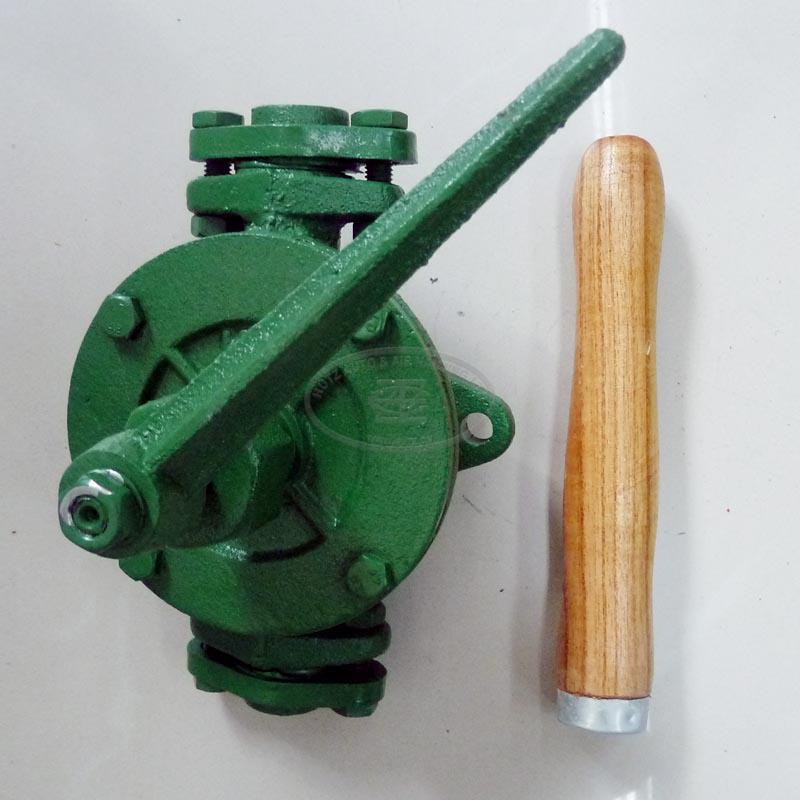

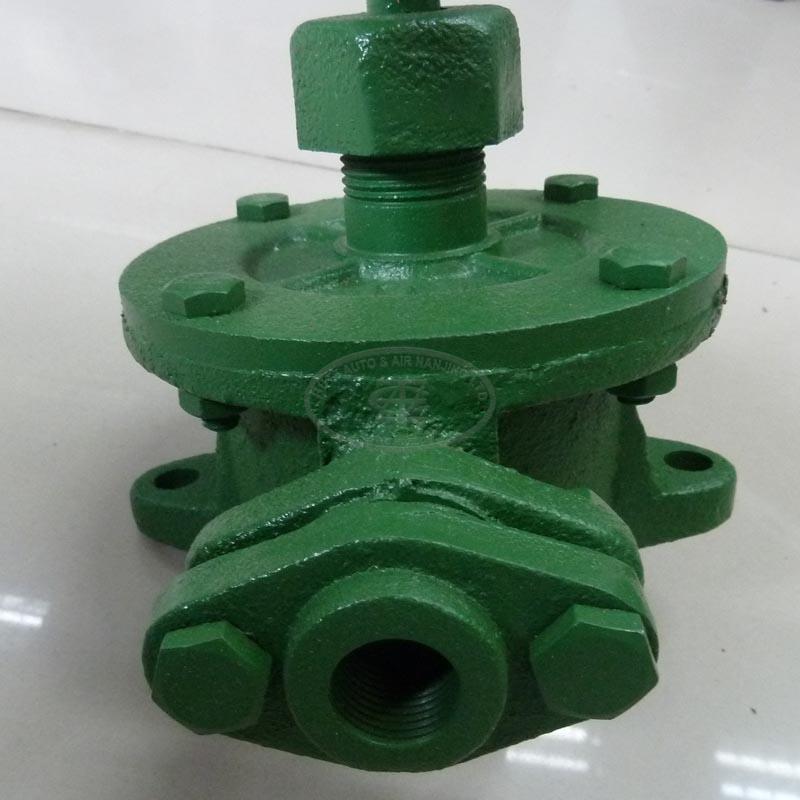

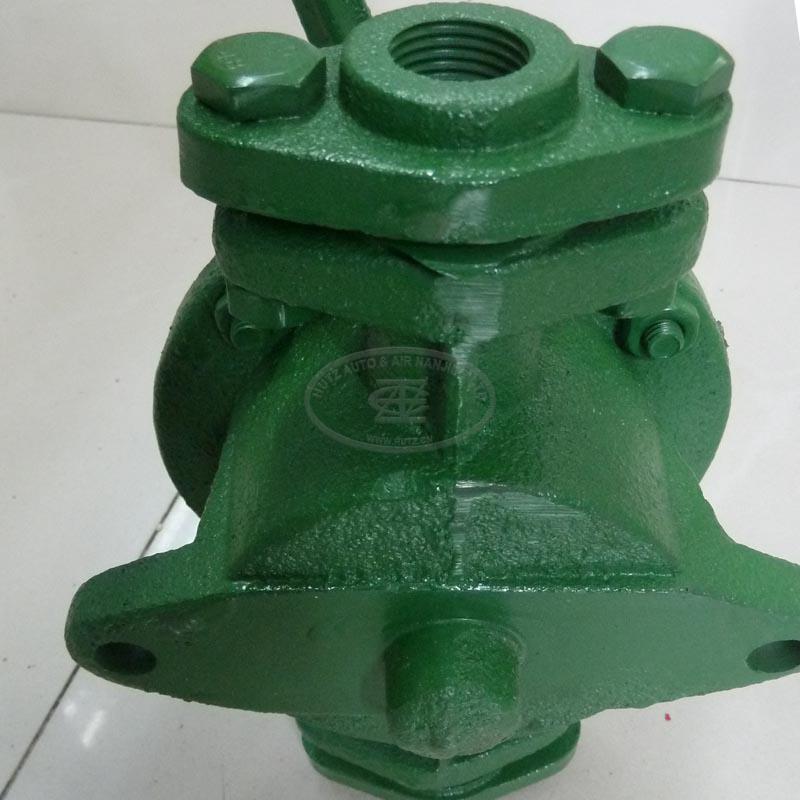

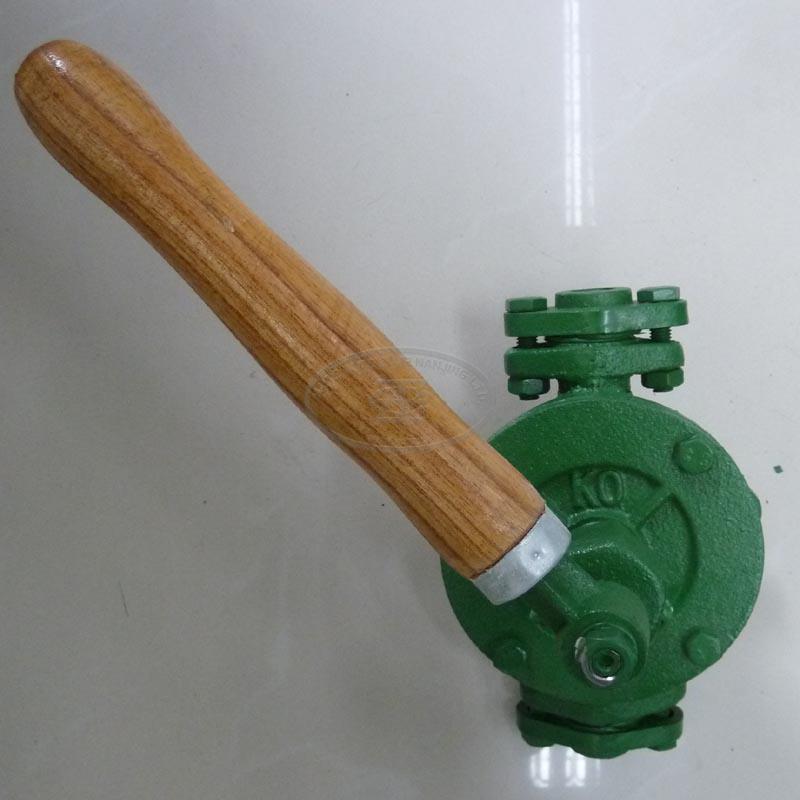

Semi Rotary Pump ODP13K01
- Inlet/Outlet diameter:13 mm
- Flow rate:20 lit/min
- Handle length:300 mm
- Pump construction:cast Iron
- Product description: Semi Rotary Hand Pump - Self-priming and Double-acting Pump:130 mm,Cast Iron Handle:300 mm,110°,wood CE approval
Product introduction
|
Model |
ODP10K01 |
ODP13K01 |
| Inlet/Outlet diameter |
3/8"(10mm) |
1/2"(13mm) |
| Flow rate |
7.5 lit/min |
20 lit/min |
| Revolution rate | n/a |
104 turns/min |
| Suction lift |
5 m |
5 m |
| Pump head |
25 m |
25 m |
| Pump external diameter |
130 mm |
130 mm |
| Pump construction |
Cast Iron |
Cast Iron |
| Rotary assembly |
zinc alloy, Brass at option |
zinc alloy, Brass at option |
| Handle length |
192 mm |
300 mm |
| Handle rotation |
110° |
110° |
| Handle material |
wood |
wood |
| Connection |
thread/flange |
thread/flange |
| N.W. |
3.5 kg |
5.1 kg |
