> Coil Spring Compressor

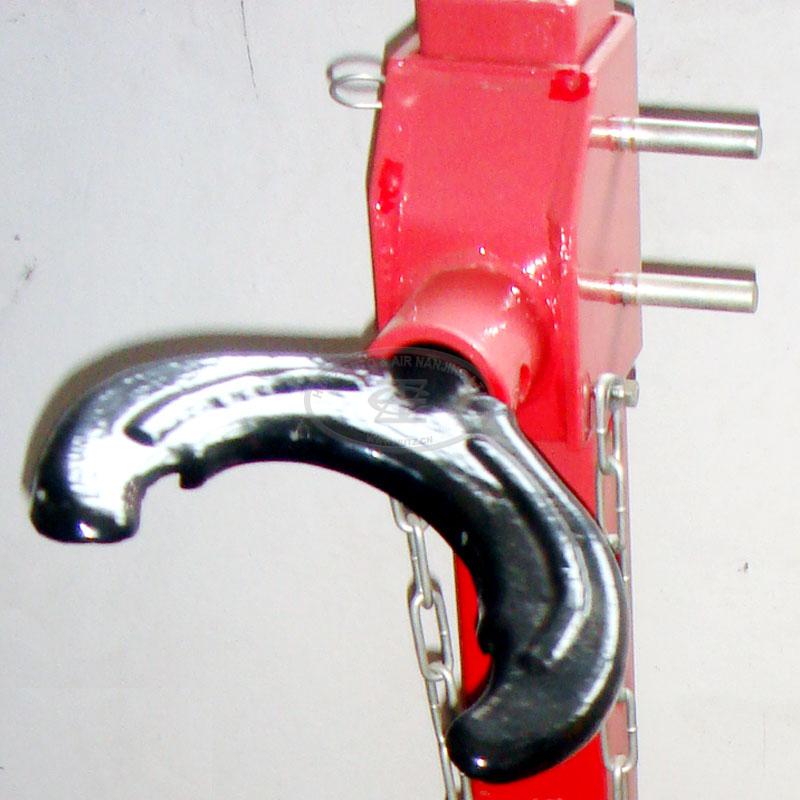

Spring Compressor SC10CH04A
- Capacity: 1 ton
- Max work length: 570 mm
- Spring dia. range: 101.60-165.10 mm
- Ram travel: 180 mm
- Product description: Coil spring compressor - hydraulic stand type SC10CH04A rated capacity 1,000 kg/ 2,200 lb max. work length 110-570 mm spring diameter range 101.60-165.10 mm hydraulic pump long ram jack
Product introduction
| Model | SC10CH04A |
| Rated capacity | 1,000 kg / 2,200 lb |
| Max. work length | 110 - 570 mm |
| Max. spring diameter | 101.60 - 165.10 mm |
| Ram travel | 180 mm |
| Upper jacket | unadjustable |
| Lower jacket | unadjustable |
| Hydraulic pump | long ram jack |
| Accessories | with claws |
| Feature | pedal |
| Package size | 118 x 29 x 22 cm |
| N.W. | 34 kg |
