> Hand Crank & Lever Winch

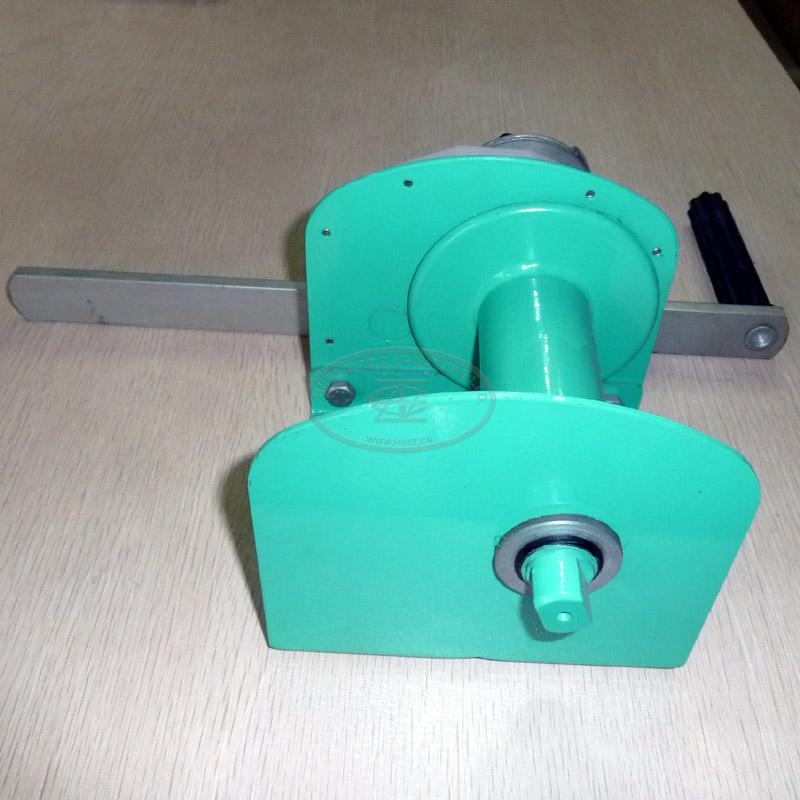

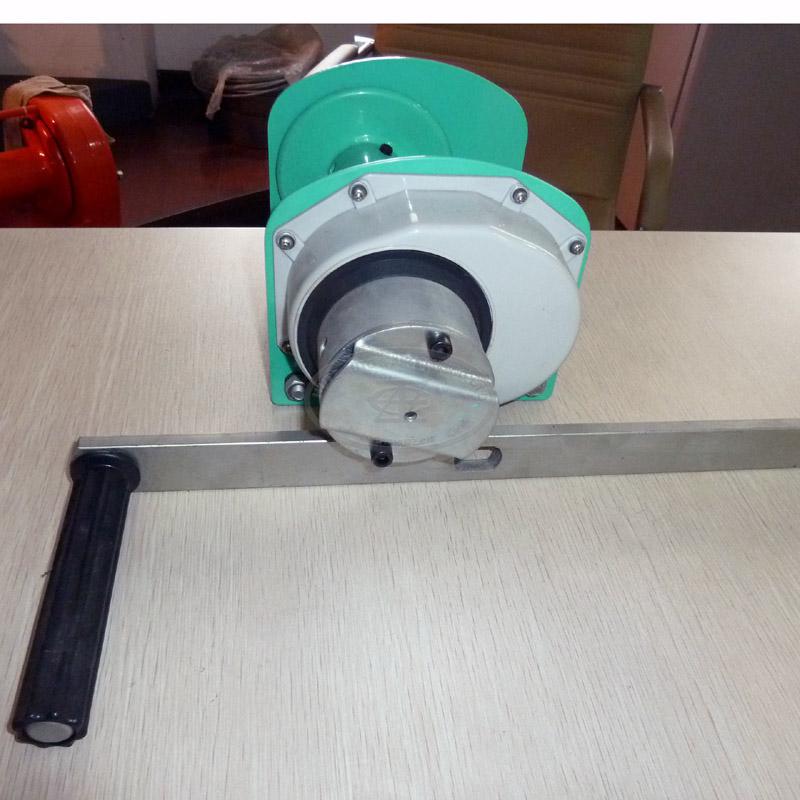

Hand Lever Winch HWL010
- Rated capacity: 100 kg
- Speed ratio: 1 : 1
- Travel per act: 240 mm
- Hub dia. x width: Φ48 mm x 116 mm
- Product description: Multi-functional hand lever winch - without/with cable - HWL010 Steel painted. Features double friction discs, new braking pawl and change over ratchet mechanism. Widely used to lift, pull and stre
Product introduction
| Model | HWL010 | HWL010A |
| Rated capacity | 100 kg | 100 kg |
| Test load | 1.225 kN | 1.225 kN |
| Speed ratio | 1 : 1 | 1 : 1 |
| Travel per act |
240 mm max. |
240 mm max. |
| Hand force | 115 N min. | 115 N min. |
| Hub diameter and width |
Φ48 mm x 116 mm |
Φ48 mm x 116 mm |
| Mounted cable | without |
Φ5 mm x 10 M with hook |
| Packing size | 32 x 20 x 18 mm / 1-pc | 120 x 100 x 110 cm / 72-pc |
| N.W. | 6.9 kg | 7.85 kg |
PREVIOUS：Hand Crank Winch HWE100A
NEXT：Hand Lever Winch HWL030
