> Manual Barrel Pump & Dispenser - Rotary

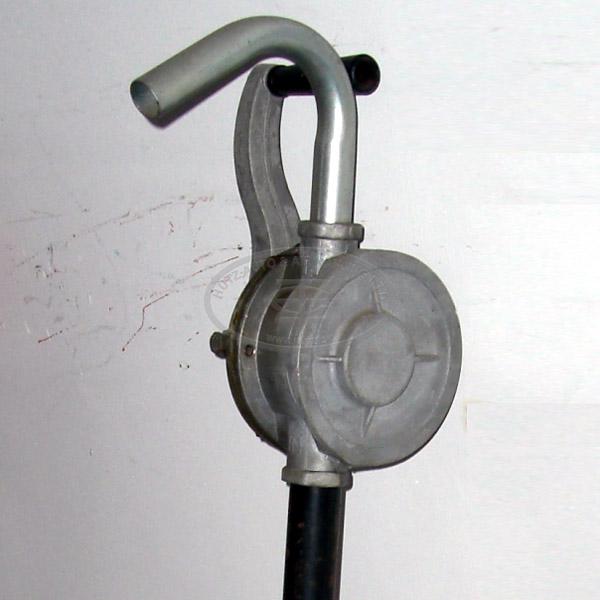

Rotary Pump ODP32F01
- Inlet tube diameter:Φ32 mm/two-piece
- Outlet tube diameter:Φ25 mm
- Pump inside diameter:Φ132
- Flow rate:25 lpm/70rpm
- Product description: Oil Delivery Pump - Aluminum Rotary Type Pump:Φ132 mm,cast aluminum painted Inlet tube:Φ32 mm/two-piece, steel coated Outlet tube:Φ25 mm, steel galvanized CE approval
Product introduction
|
Model |
ODP32F01 |
| Inlet tube diameter |
Φ32 mm/two-piece |
| Inlet tube | steel coated |
| Outlet tube | steel galvanised |
| Outlet tube diameter |
Φ25 mm |
| Pump inside diameter |
Φ132 mm |
| Suction head |
1.5 m |
| Pump head |
5 m |
| Flow rate |
25 lpm/70rpm |
| Pump construction |
cast aluminum powder caoted |
| Extension hose |
at option |
| Action |
Reversible |
| N.W. |
3.5 kg |
