> Manual Barrel Pump & Dispenser - Rotary

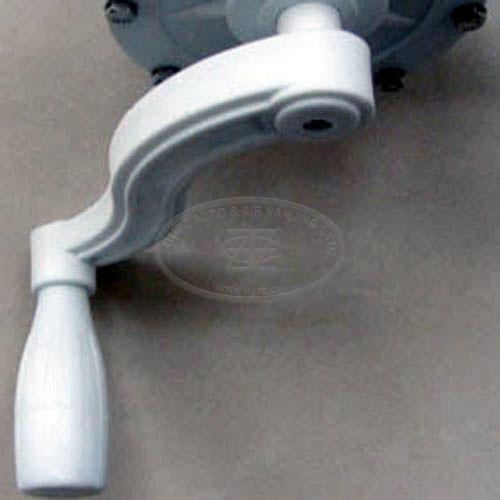

Rotary Pump ODP21RP06
- Inlet Diameter:21 mm/ 3-piece
- Outlet Diameter:20 mm
- Pump Diameter:132 mm
- Flow Rate:21.7 lpm/70rpm
- Product description: Manual barrel pump - plastic construction - round head - ODP21RP06 for chemicals, fuel, lubrication oil and other low density liquid High quality PP vane and pump construction for reversible action.
Product introduction
|
Model |
ODP21RP06 |
|
Inlet diameter |
21 mm/ 3-piece |
|
Outlet diameter |
20 mm |
| Pump diameter |
132 mm |
| Suction head |
1.5 m |
| Pump head |
2.0 m |
| Flow rate |
21.7 lpm / 70 rpm |
| Pump construction |
PP |
| Vane | PP |
| Seal | teflon cover seal + viton O ring |
| Inlet pipe |
1,000 mm, 3-piece, PP |
| Outlet pipe |
curved spout, PP |
| Max. viscosity | 2,000 SSU |
| Max. fluid temp. | 70 degree C |
| Action |
reversible |
| Mounting | 2" bung adapter |
| Option |
PE extention hose |
| Package | box + carton |
| N.W. |
1.67 kg |
