> Pneumatic Grease Pump 50:1

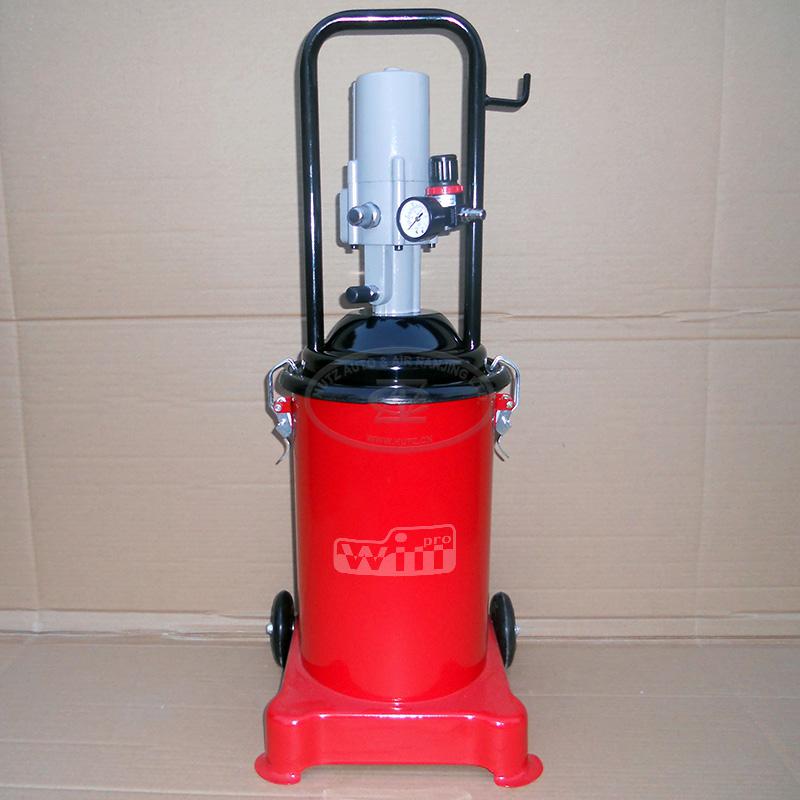

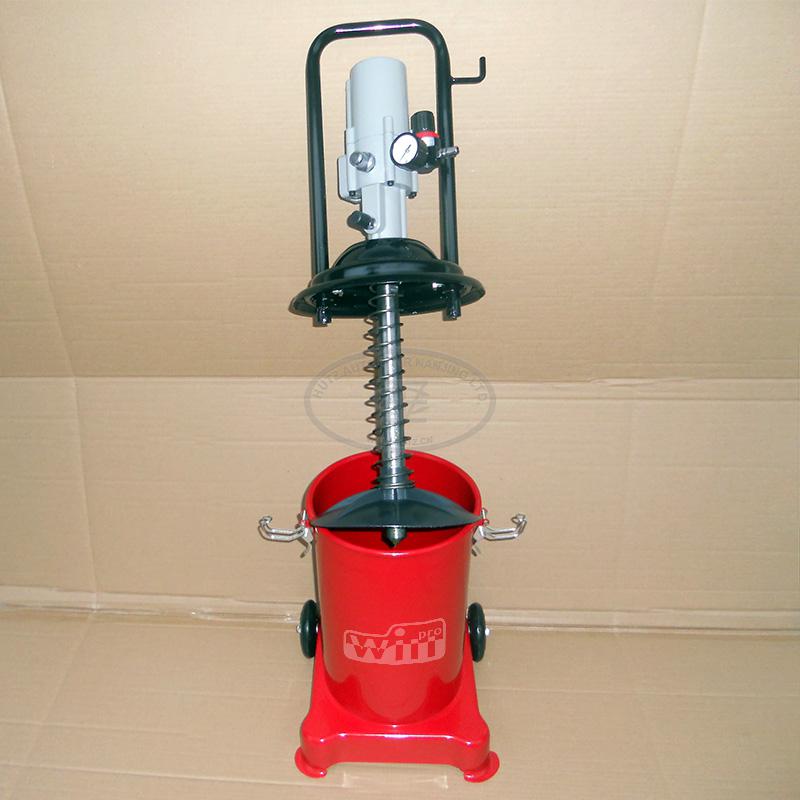

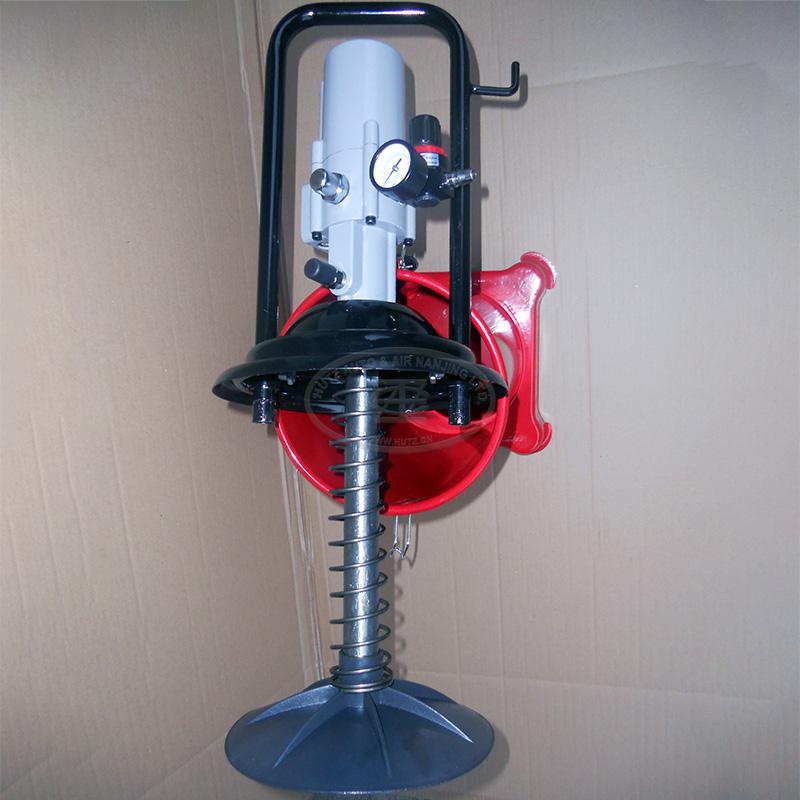

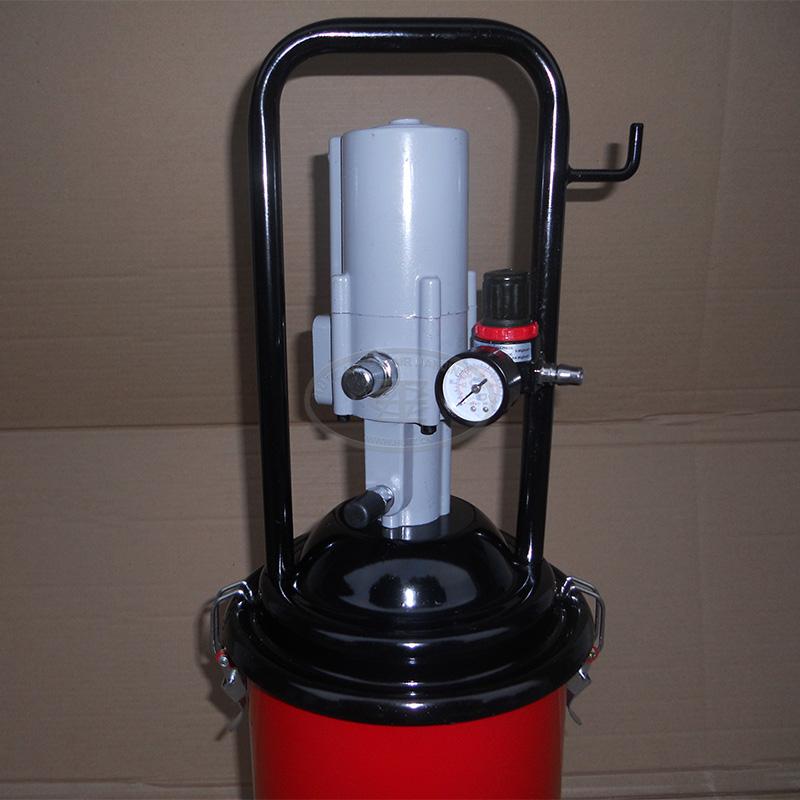

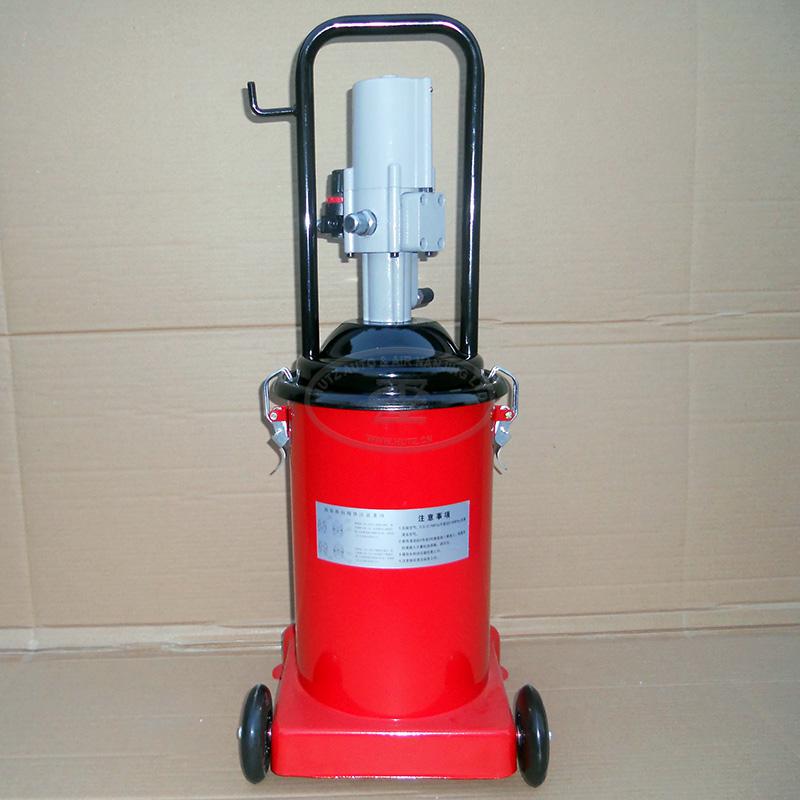

Grease Dispenser GPT15AC50L1
- Compression ratio: 50:1
- Bucket: 15 L, square base with 2 wheels
- Flow rate: 0.85 L/min
- Product description: Pneumatic grease dispenser - 50:1 - GPT15AC50L1 Grease pump: AC50L1 Compression ratio: 50:1 Bucket capacity: 15 L
Product introduction
| Model | GPT12AC50L1 | GPT15AC50L1 |
| Grease pump | AC50L1 | AC50L1 |
| Compression ratio | 50 : 1 | 50 : 1 |
| Grease inlet tube |
Φ29.8 x 370 mm |
Φ29.8 x 370 mm |
| Grease transmission | 25 - 40 mpa | 25 - 40 mpa |
| Max flow rate | 0.85 L/min | 0.85 L/min |
| Air inlet size |
Φ1/4" |
Φ1/4" |
| Air inlet pressure | 0.5 - 0.8 mpa | 0.5 - 0.8 mpa |
| Bucket diameter/capacity |
Φ218 mm I.D. / 12 L |
Φ218 mm I.D. / 15 L |
| Base | square, with 2 wheels | square, with 2 wheels |
| Accessories | R2 hose with gun | R2 hose with gun |
| N.W. | 10 kg | 11 kg |
