> Transmission Jack - Vertical
Transmission Jack TJ05VH01
- Capacity: 0.5 ton
- Min. height: 870 mm
- Max. height: 1800 mm
- Stage: 2
- Product description: Hydraulic transmission jack - vertical type capacity 0.5 ton with 2 stages min. height 870 mm max. height 1800 mm
Product introduction
| Model | TJ05VH01 |
| Capacity | 0.5 ton |
| Max. strength | 120% |
| Min. height | 870 mm |
| Max. height | 1,800 mm |
| Hydraulic pump | doubl cylinder |
| 1st stage stroke | 470 mm |
| 2nd stage stroke | 460 mm |

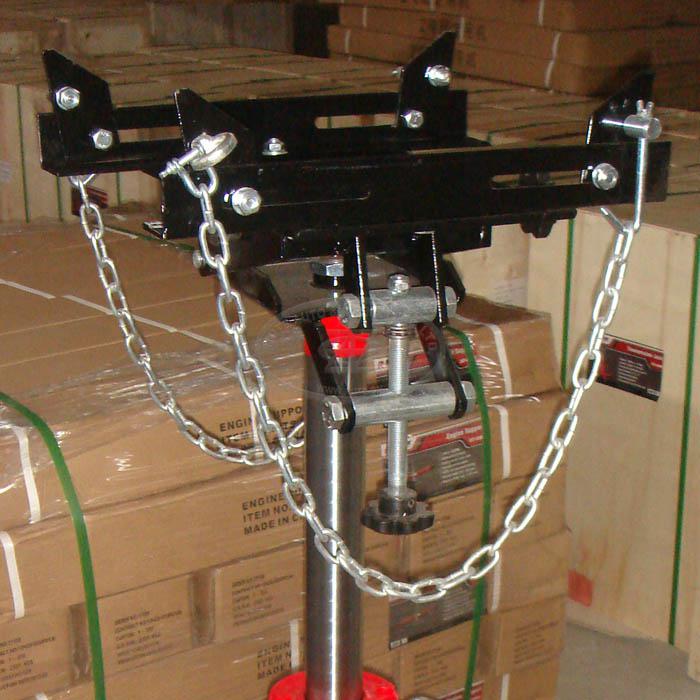

| Saddle | AT05T01 |

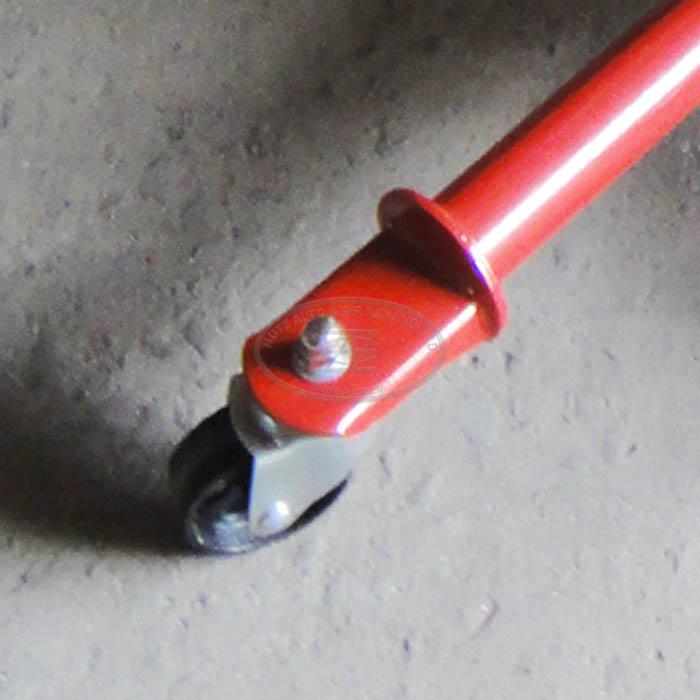

| Caster | 3.5" steel swivel |
| Feature | with pedal |
| N.W. | 80 kg |
