> Hand Crank & Lever Winch

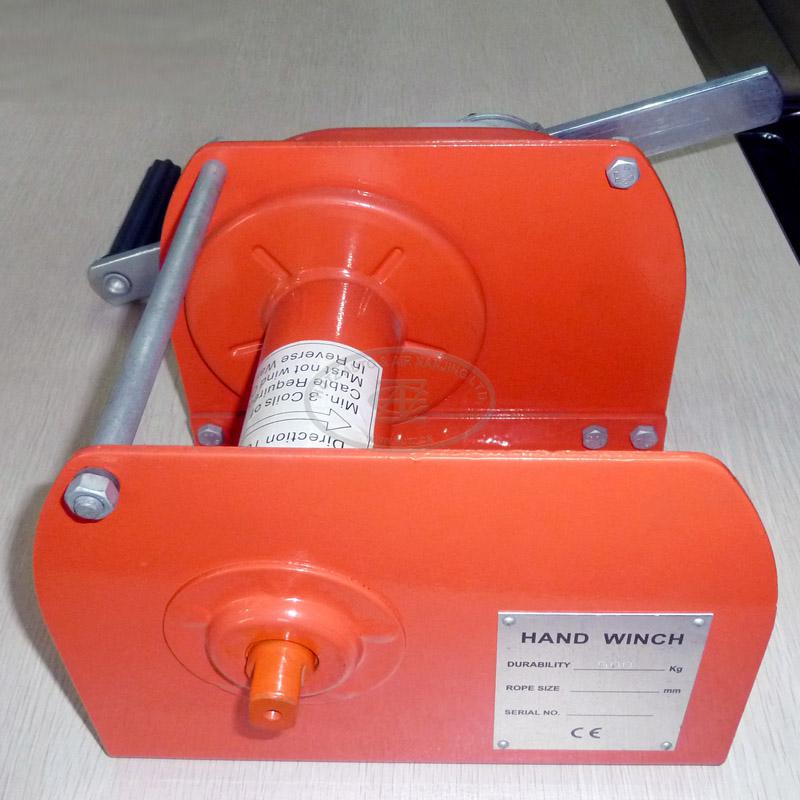

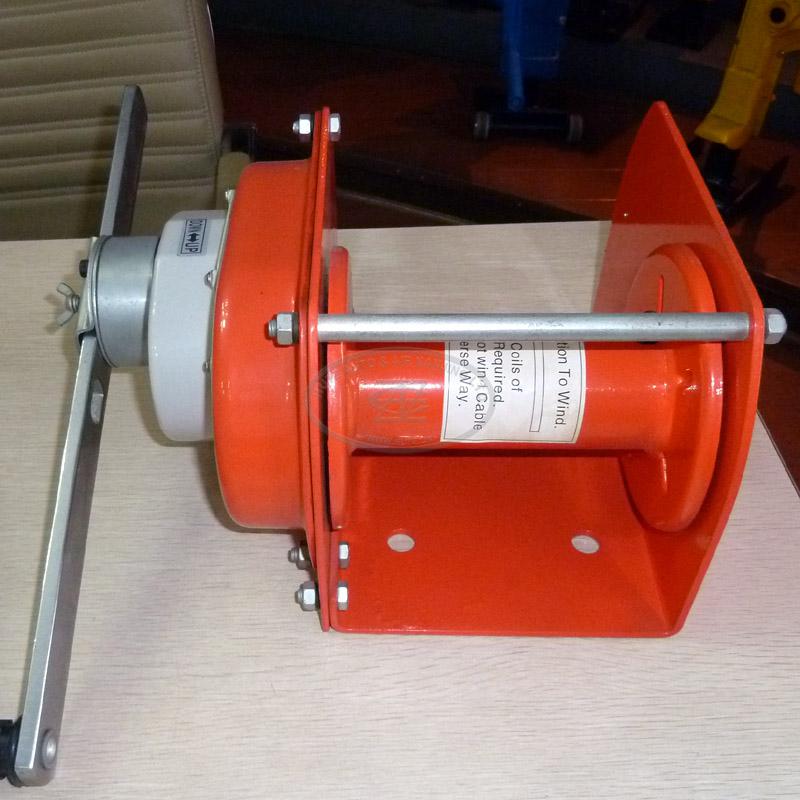

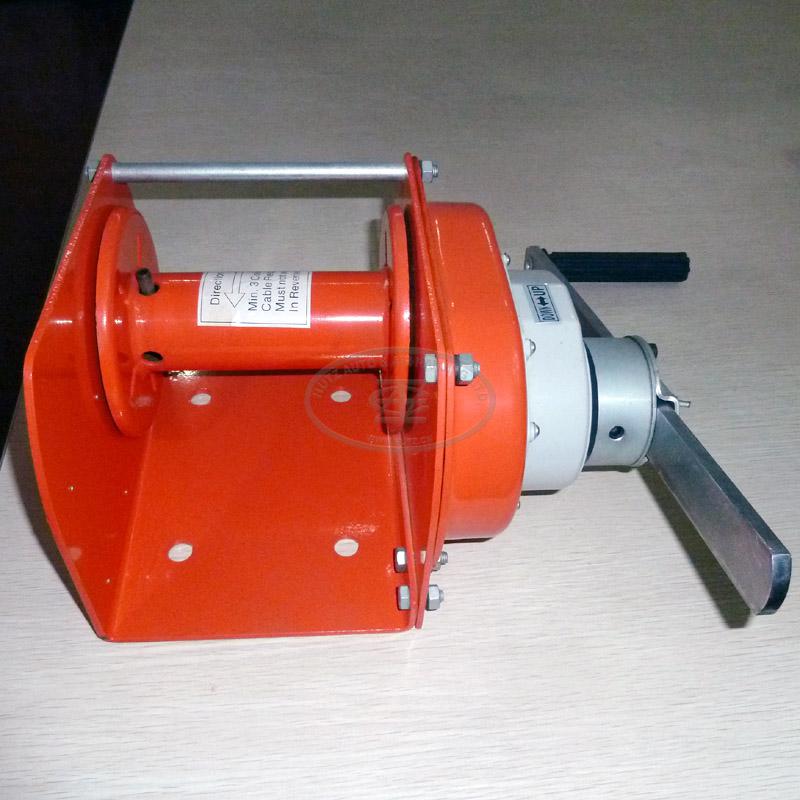

Hand Lever Winch HWL050
- Rated capacity: 500 kg
- Speed ratio: 4.33 : 1
- Travel per act: 350 mm
- Hub dia. x width: Φ60 mm x 150 mm
- Product description: Multi-functional hand lever winch - without/with cable - HWL050 Steel painted. Features double friction discs, new braking pawl and change over ratchet mechanism. Widely used to lift, pull and stre
Product introduction
| Model | HWL050 | HWL050A |
| Rated capacity | 500 kg | 500 kg |
| Test load | 6.125 kN | 6.125 kN |
| Speed ratio | 4.33 : 1 | 4.33 : 1 |
| Travel per act |
350 mm max. |
350 mm max. |
| Hand force | 120 N min. | 120 N min. |
| Hub diameter and width |
Φ60 mm x 150 mm |
Φ60 mm x 150 mm |
| Mounted cable | without |
Φ6.5 mm x 10 M with hook |
| Packing size | 39 x 28 x 25 mm / 1-pc | 120 x 100 x 115 cm / 40-pc |
| N.W. | 14.5 kg | 16.61 kg |
