> Pickup Truck Crane
Pickup Crane EC10WH03
- Rated capacity: 2,000 lb / 1 ton
- Lifting range: 0-1,620 mm
- Arm length range 995-1,030 mm
- Product description: Pickup truck crane with hand winch EC10WH03 rated capacity 1 ton max. strength 125% lifting range 0-1,620 mm arm length range 995-1,030 mm
Product introduction
| Model | EC05WH03 | EC10WH03 |
| Rated capacity | 1,000 lb / 0.5 ton | 2,000 lb / 1 ton |
| Max. strength | 125% | 125% |
| Lifting range | 0 - 1,620 mm | 0 - 1,620 mm |
| Arm length range | 995 - 1,030 mm | 995 - 1,030 mm |
| Hydraulic pump | single 1 ton | single 3 ton |
| Ram stroke | 490 mm | 380 mm |

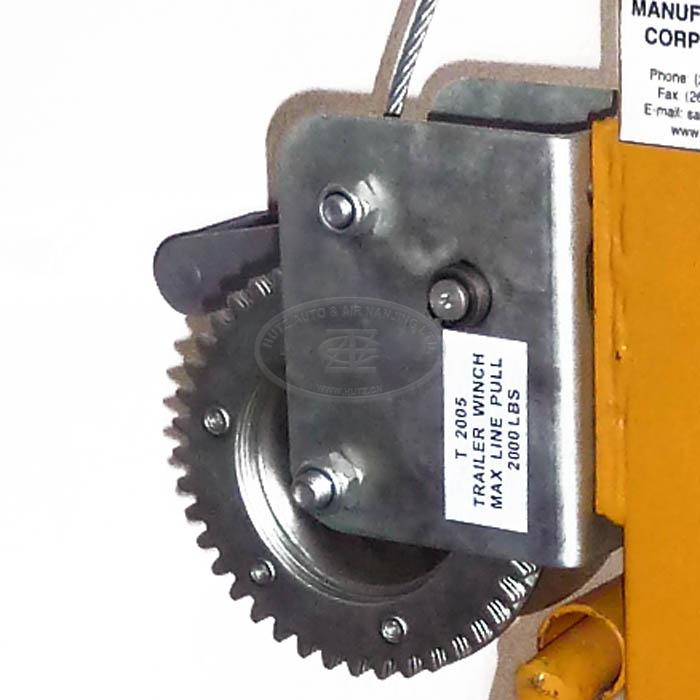

| Hand winch | with | with |

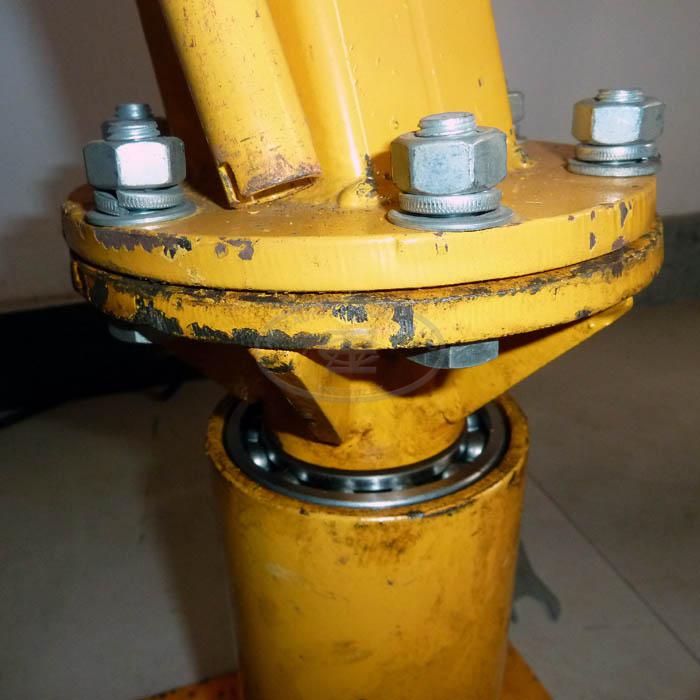

| Feature | 360 degree swivel, high profile with steel rope and chain | 360 degree swivel, high profile with steel rope and chain |
| N.W. | 55 kg | 58 kg |
