> Semi Rotary Hand Pump

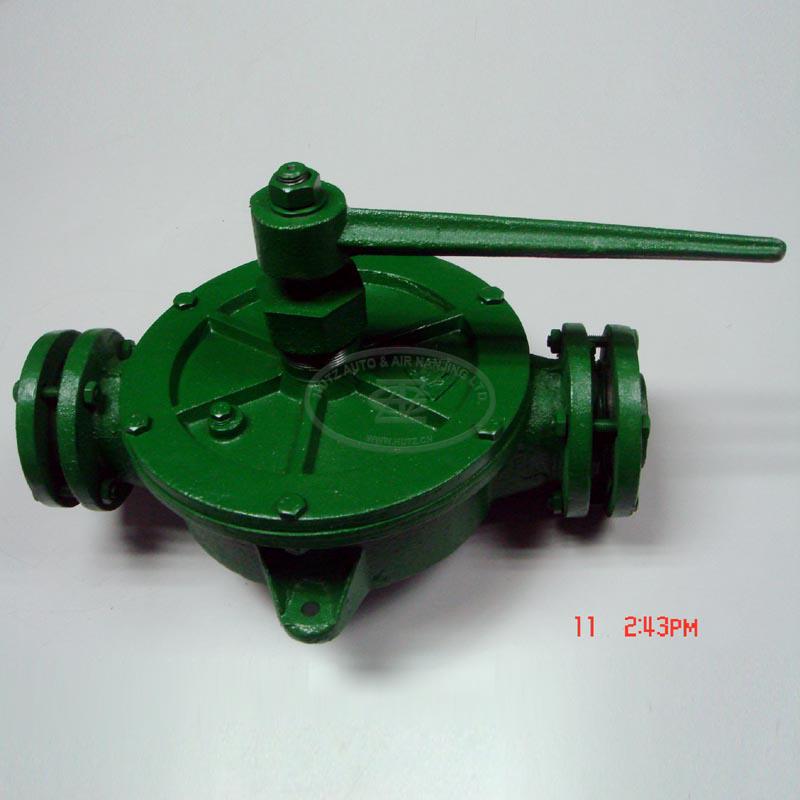

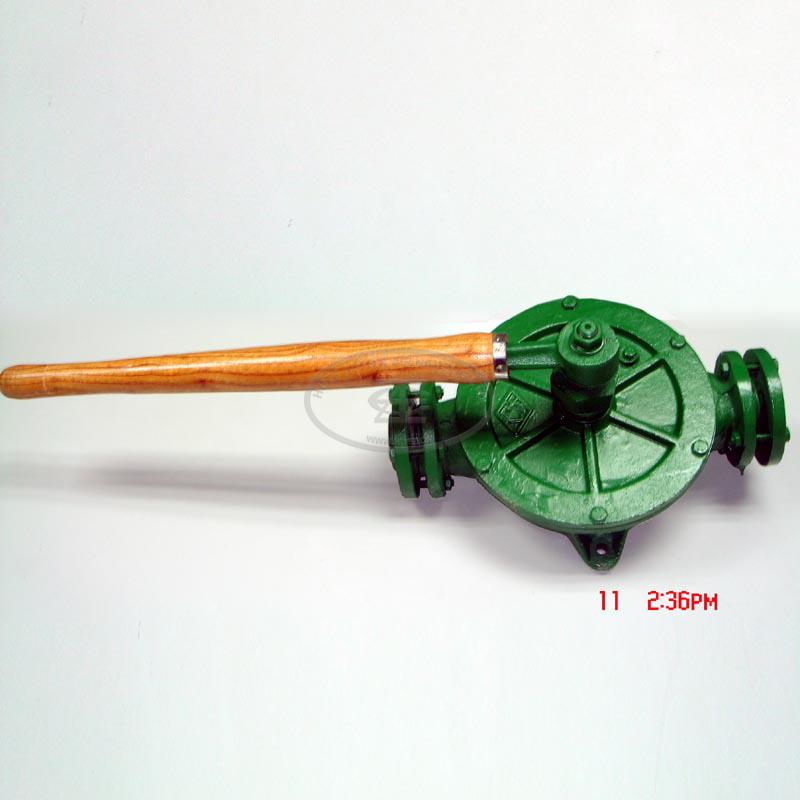

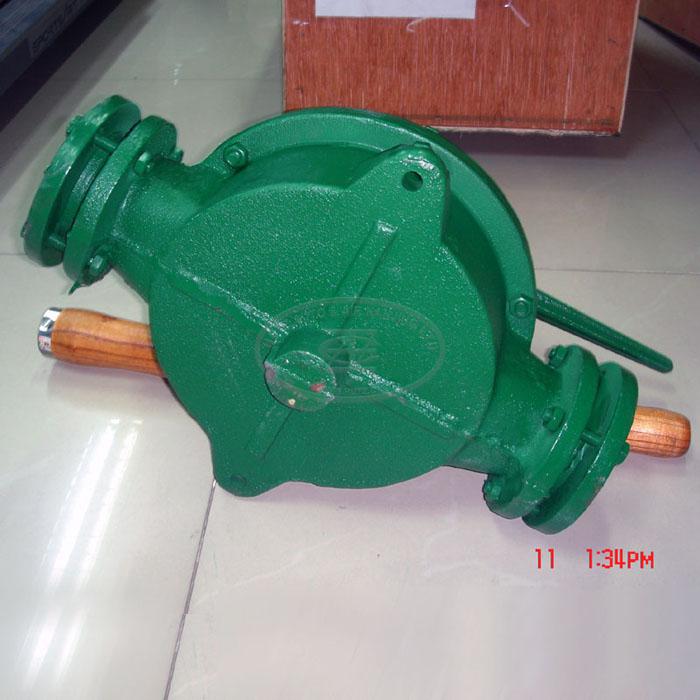

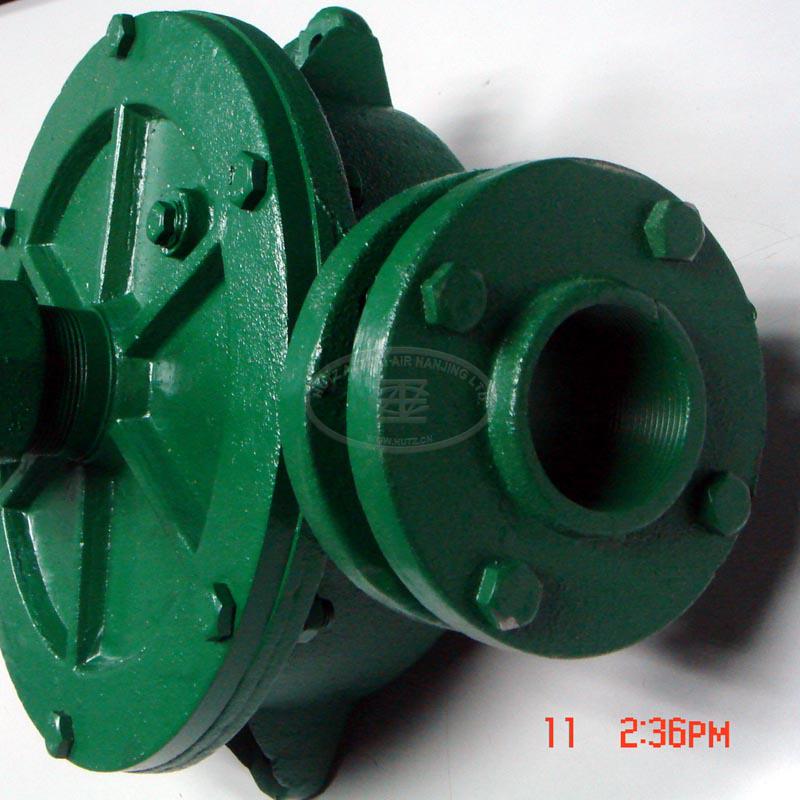

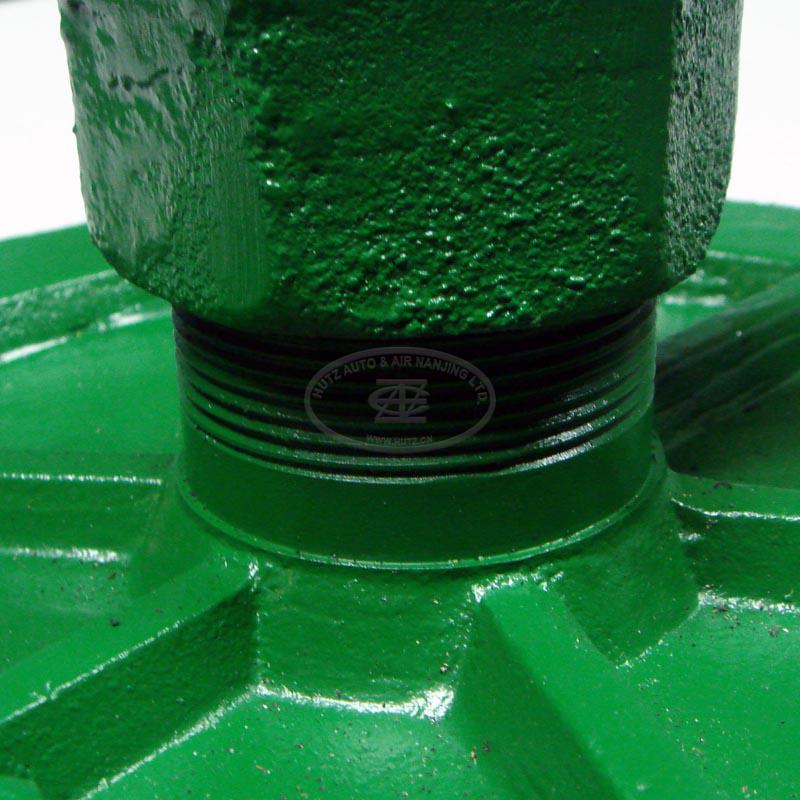

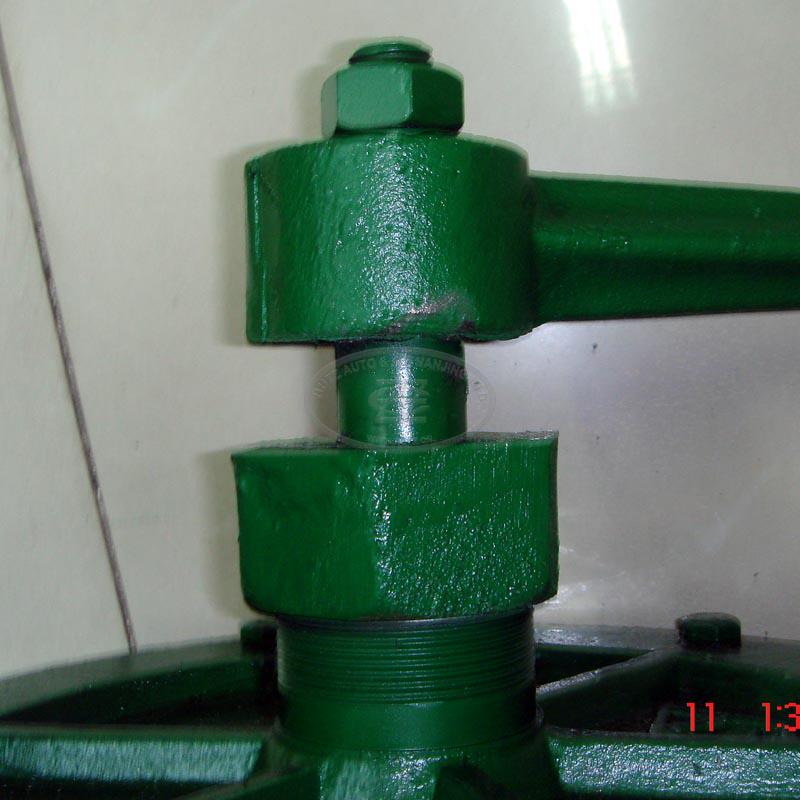

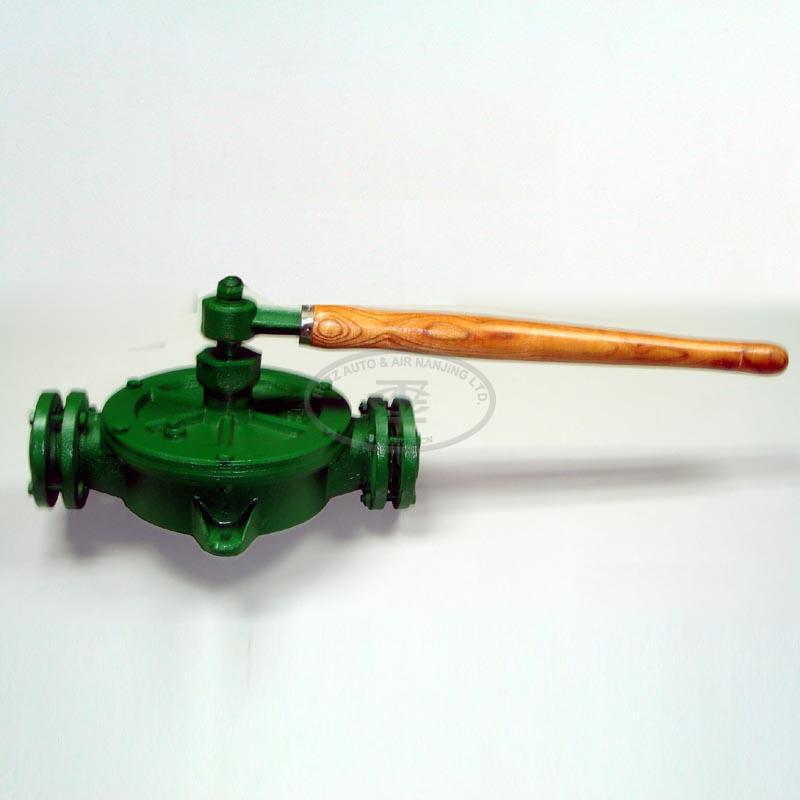

Semi Rotary Pump ODP51K01
- Inlet/Outlet diameter:51 mm
- Flow rate:105 lit/min
- Handle length:600 + 275 mm
- Pump construction:cast Iron
- Product description: Semi Rotary Hand Pump - Self-priming and Double-acting Pump:260 mm,Cast Iron Handle:600+275 mm,110°,wood CE approval
Product introduction
|
Model |
ODP51K01 |
| Inlet/Outlet diameter |
2"(51mm) |
| Flow rate |
105 lit/min |
| Revolution rate |
56 turns/min |
| Suction lift |
5 m |
| Pump head |
15 m |
| Pump external diameter |
260 mm |
| Pump construction |
Cast Iron |
| Rotary assembly |
zinc alloy, Brass at option |
| Handle length |
600+275 mm |
| Handle rotation |
110° |
| Handle material |
wood |
| Connection |
thread/flange |
| N.W. |
30 kg |
