> Transmission Jack - Vertical

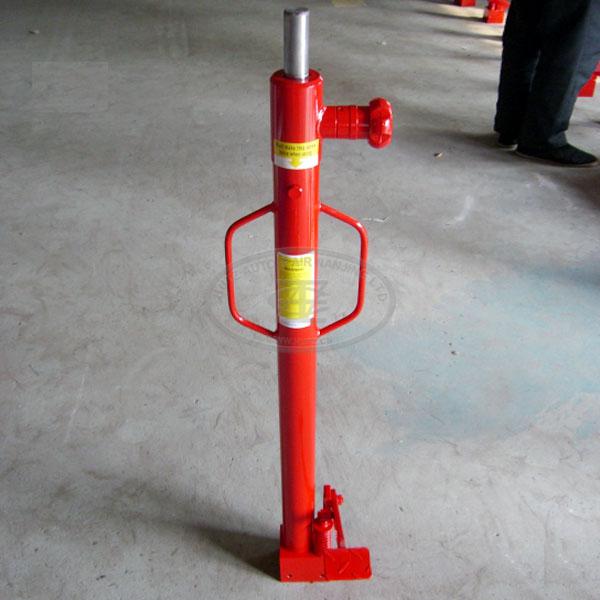

Transmission Jack TJ05VH03
- Capacity: 0.5 ton
- Min. height: 1100 mm
- Max. height: 1900 mm
- Stage: single
- Product description: Hydraulic transmission jack - vertical type TJ05VH03 capacity 0.5 ton with 1 stage min. height 1100 mm max. height 1900 mm
Product introduction
| Model | TJ05VH03 | TJ05VH03H |
| Capacity | 0.5 ton | 0.5 ton |
| Max. strength | 120% | 120% |
| Min. height | 1,100 mm | 1,130 mm |
| Max. height | 1,900 mm | 1,950 mm |
| Hydraulic pump | single | single |
| Stroke | 800 mm | 800 mm |
| Saddle | fixed style | fixed style |
| Base size | 670 x 670 mm | 670 x 670 mm |
| Caster | 3.5" steel swivel | 3.5" steel swivel |
| Feature | with pedal | with pedal |
| N.W. | 28 kg | 35 kg |
