> Steel Ratchet Jack - G Series

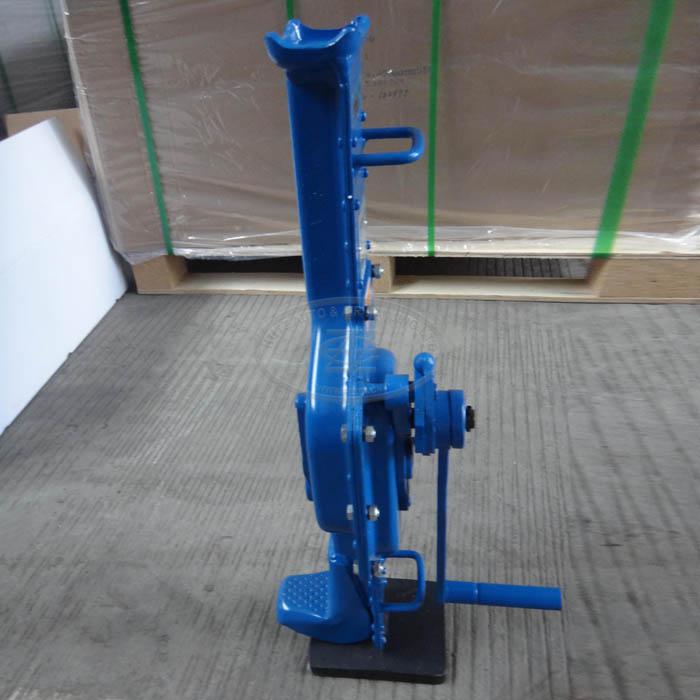

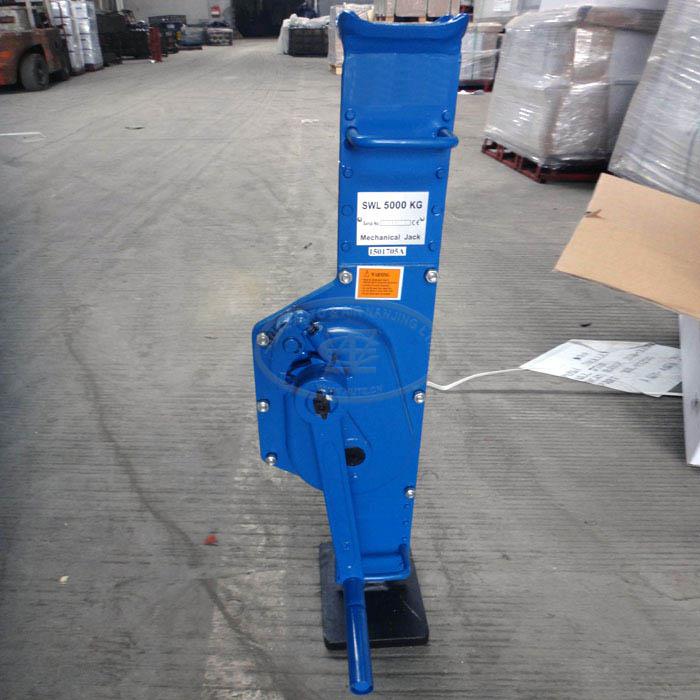

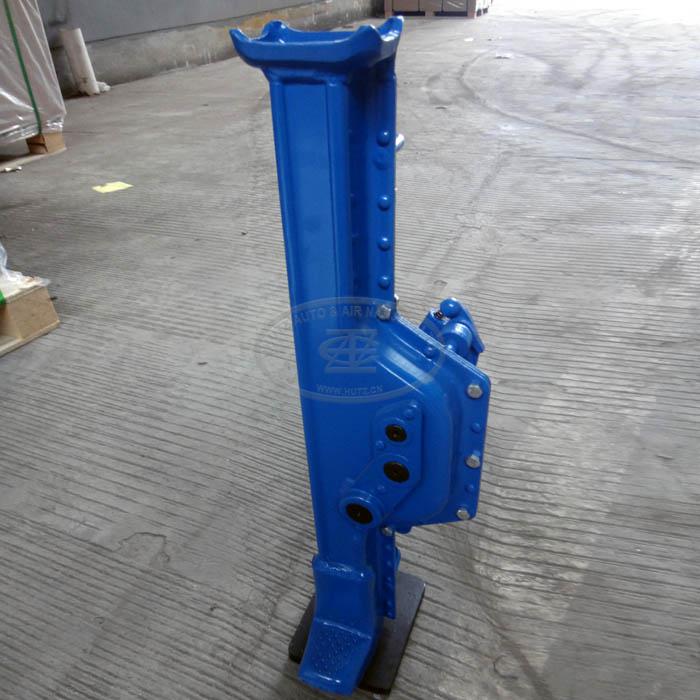

Steel Jack SJ050G01
- Rated capacity: 5 ton
- Stroke: 350 mm
- Toe min. height: 80 mm
- Head min height: 730 mm
- Product description: Steel Ratchet Jack - G Series Rated capacity: 5 ton Test load: 61.3 kN CE approved
Product introduction
| Model | SJ050G01 |
| Rated capacity | 5 ton |
| Test load | 61.3 kN |
| Chain shake | 280 N at full load |
| Stroke | 350 mm |
| Toe min. height (F) | 80 mm |
| Head min. height (H) | 730 mm |
|
Handle size (R*K) |
275*127 mm |
| Frame material | 235# steel |
| Base material | 45# steel |
| Gear material | 40# Cr. steel |
| Dimension A*D | 189*140 mm |
| Dimension E | 71 mm |
| Dimension B*C*G | 239*335*170 mm |
| Lifting with | either fixed toe or clawed head |
| Packaging | single carton + pallet |
| N.W. | 28.3 kg |
