> Steel Ratchet Jack - G Series

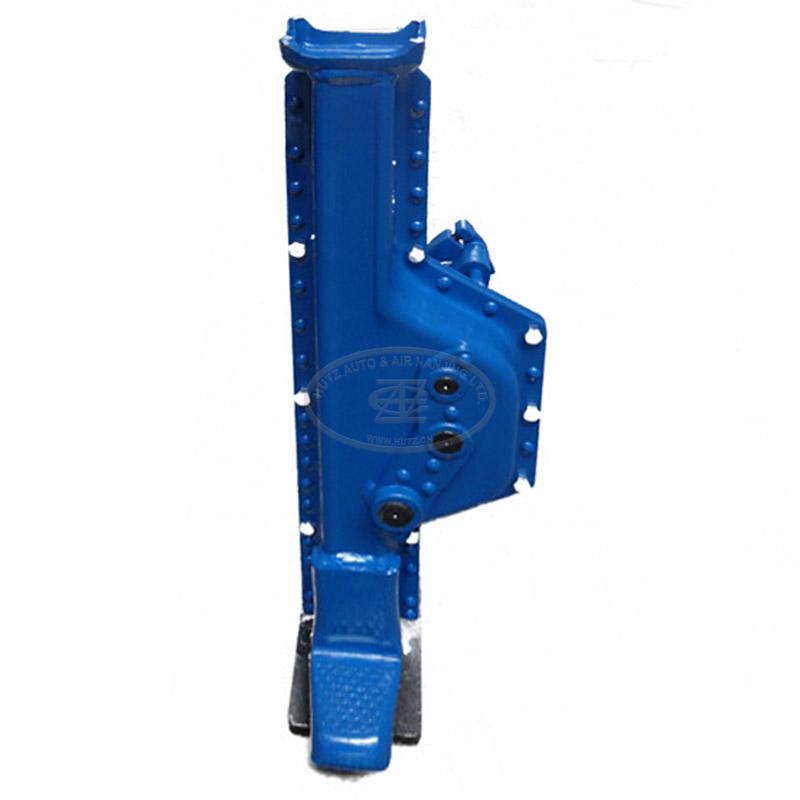

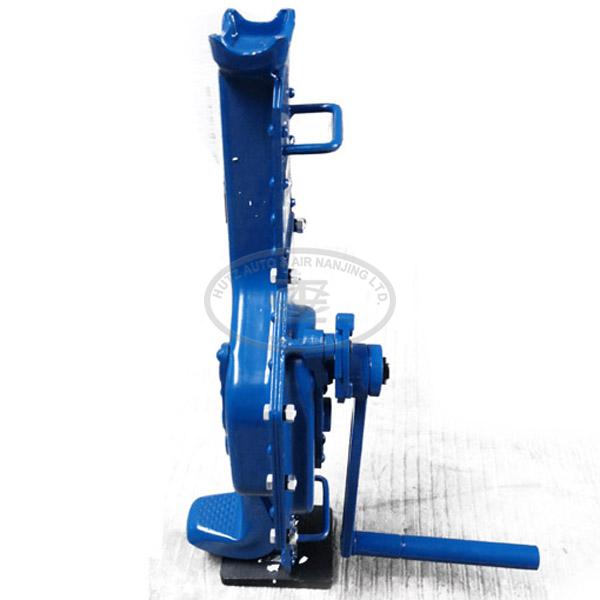

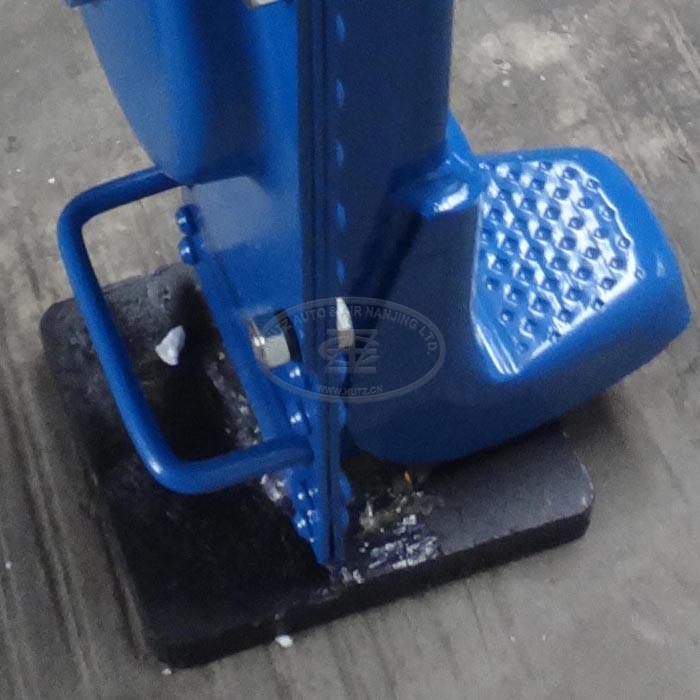

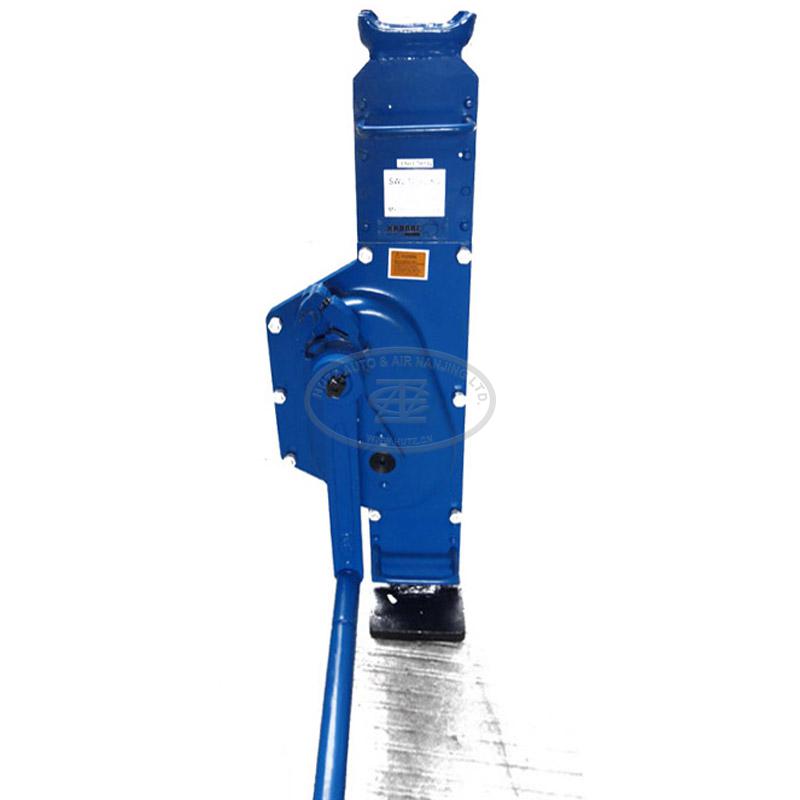

Steel Jack SJ100G01
- Rated capacity: 10 ton
- Stroke: 410 mm
- Toe min. height: 85 mm
- Head min height: 800 mm
- Product description: Steel Ratchet Jack - G Series Rated capacity: 10 ton Test load: 122.5 kN CE approved
Product introduction
| Model | SJ100G01 |
| Rated capacity | 10 ton |
| Test load | 122.5 kN |
| Chain shake | 560 N at full load |
| Stroke | 410 mm |
| Toe min. height (F) | 85 mm |
| Head min. height (H) | 800 mm |
|
Handle size (R*K) |
300*248 mm |
| Frame material | 235# steel |
| Base material | 45# steel |
| Gear material | 40# Cr. steel |
| Dimension A*D | 250*140 mm |
| Dimension E | 86 mm |
| Dimension B*C*G | 293*498*170 mm |
| Lifting with | either fixed toe or clawed head |
| Packaging | single carton + pallet |
| N.W. | 46.4 kg |
