> Steel Ratchet Jack - G Series

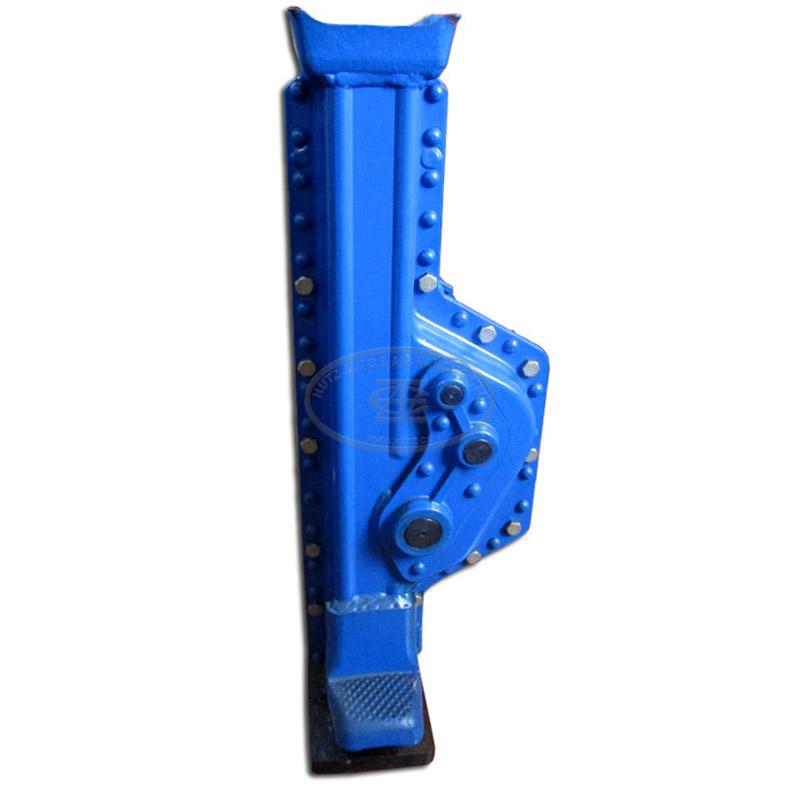

Steel Jack SJ160G01
- Rated capacity: 16 ton
- Stroke: 330 mm
- Toe min. height: 95 mm
- Head min height: 800 mm
- Product description: Steel Ratchet Jack - G Series Rated capacity: 16 ton Test load: 196 kN CE approved
Product introduction
| Model | SJ160G01 |
| Rated capacity | 16 ton |
| Test load | 196 kN |
| Chain shake | 640 N at full load |
| Stroke | 330 mm |
| Toe min. height (F) | 95 mm |
| Head min. height (H) | 800 mm |
|
Handle size (R*K) |
300*250 mm |
| Frame material | 235# steel |
| Base material | 45# steel |
| Gear material | 40# Cr. steel |
| Dimension A*D | 275*150 mm |
| Dimension E | 78 mm |
| Dimension B*C*G | 320*514*180 mm |
| Lifting with | either fixed toe or clawed head |
| Packaging | single carton + pallet |
| N.W. | 65 kg |
